A purpose made medical solution for temporary critical care facilities

Concept Cubicles Systems in partnership with established and trusted fabricators has developed an emergency ITU Bay system to the highest standards:

Build Quality

Free-standing, private, strong & rigid system – no strengthening required

Panels tried & tested in medical environments (tested to EN438)

All fixings are counter-sunk to create smooth surfaces

Hygiene & Ongoing Maintenance

Designed & manufactured to the latest HBN & HTM guidelines

Easy clean, wipeable surfaces

Minimised joints, no dirt traps/gaps

Full Turnkey Solutions

Built ready for the easy installation of bedside critical services

Bedhead trunking available as an optional extra

Medical gas set up available as an optional extra

Sustainability

Fully recyclable & easy to dismantle system

Raw materials sourced as part of a sustainable circular economy programme

PEFC & FSC Certified


Our Partners

Collectively we are able to produce very large numbers of bays in very little time and can send part loads in batches to speed up delivery.

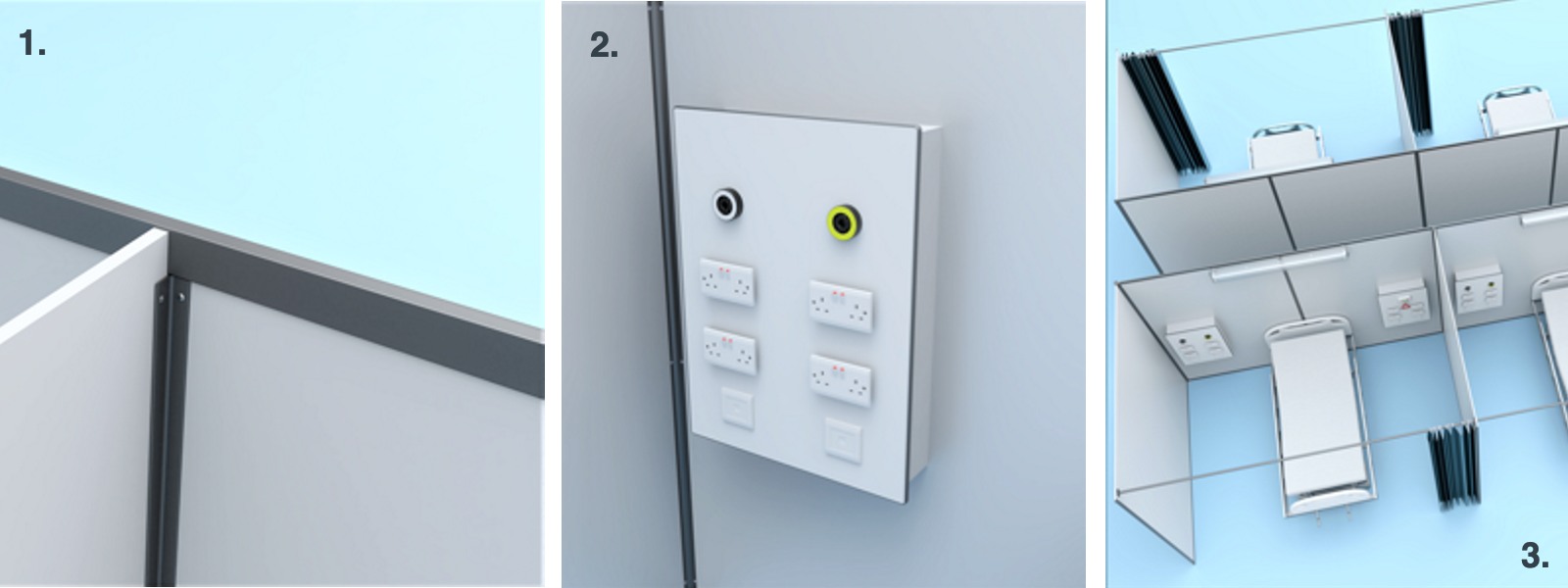

Features

1 . The system is designed with medical guidelines in mind. All hinges and joints are seamlessly integrated and screws are counter-sunk into the panel material to allow for easy cleaning and maintenance.

The panel material is manufactured to the latest HBN and HTM medical standards.

2. Services such as medical gases and nurse call can be integrated in to the ITU bays. The panel material is rigid and strong enough to support these services and trunking without additional strengthening.

Additional services such as medical gases and bedhead trunking can be provided and installed as an optional extra.

3. Full-height panels and curtain offer full privacy to patients.

The bay system utilises a void area in between units to allow access to services from both sides, resulting in minimal disruption to the patient and medical staff.

Technical downloads can be found below.
